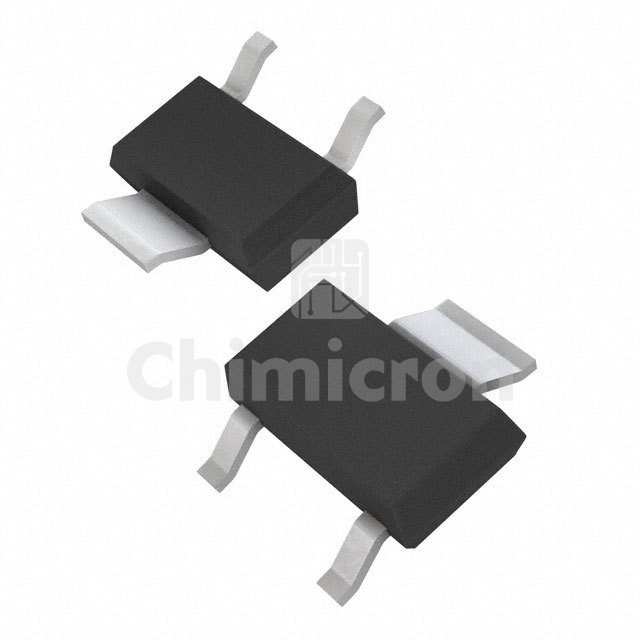

IPN60R360P7SATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CHANNEL 600V 9A SOT223
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™ P7
In Stock:9450
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPN60R360P7SATMA1 IR (Infineon Technologies) at chimicron.com. We have 9450 pieces of IPN60R360P7SATMA1 in stock available now. Submit an inquiry for IPN60R360P7SATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™ P7
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs360mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id4V @ 140µA
Gate Charge (Qg) (Max) @ Vgs13 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds555 pF @ 400 V
FET Feature-
Power Dissipation (Max)7W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SOT223
Package / CaseTO-261-3
