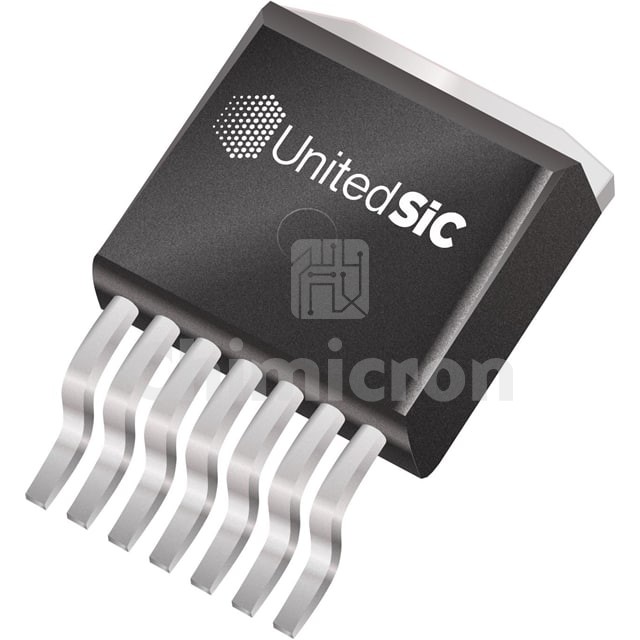

UF3SC120040B7S
Manufacturer: UnitedSiC
Description: 1200V/40MOHM, SIC, STACKED FAST
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:2717
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UF3SC120040B7S UnitedSiC at chimicron.com. We have 2717 pieces of UF3SC120040B7S in stock available now. Submit an inquiry for UF3SC120040B7S or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Cascode SiCJFET)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C47A (Tc)
Drive Voltage (Max Rds On, Min Rds On)12V
Rds On (Max) @ Id, Vgs45mOhm @ 35A, 12V
Vgs(th) (Max) @ Id6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs43 nC @ 12 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds1500 pF @ 100 V
FET Feature-
Power Dissipation (Max)214W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
