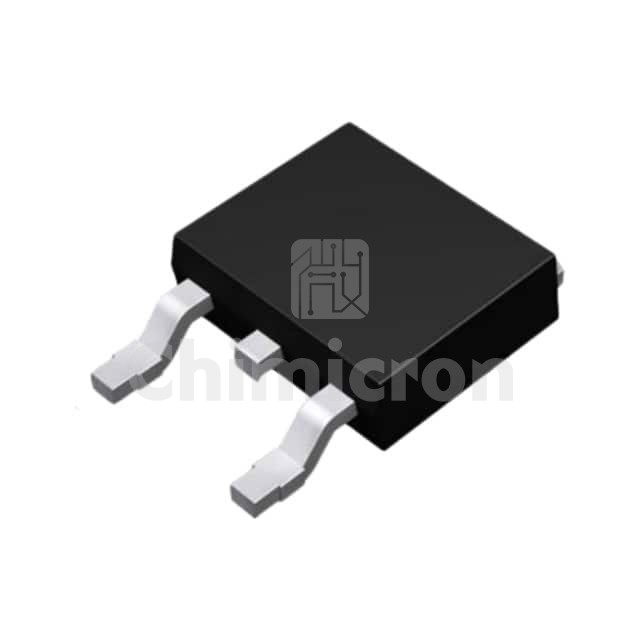

RD3L03BATTL1
Manufacturer: ROHM Semiconductor
Description: PCH -60V -35A POWER MOSFET - RD3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:2100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the RD3L03BATTL1 ROHM Semiconductor at chimicron.com. We have 2100 pieces of RD3L03BATTL1 in stock available now. Submit an inquiry for RD3L03BATTL1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C35A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs41mOhm @ 35A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs37 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1930 pF @ 30 V
FET Feature-
Power Dissipation (Max)56W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
