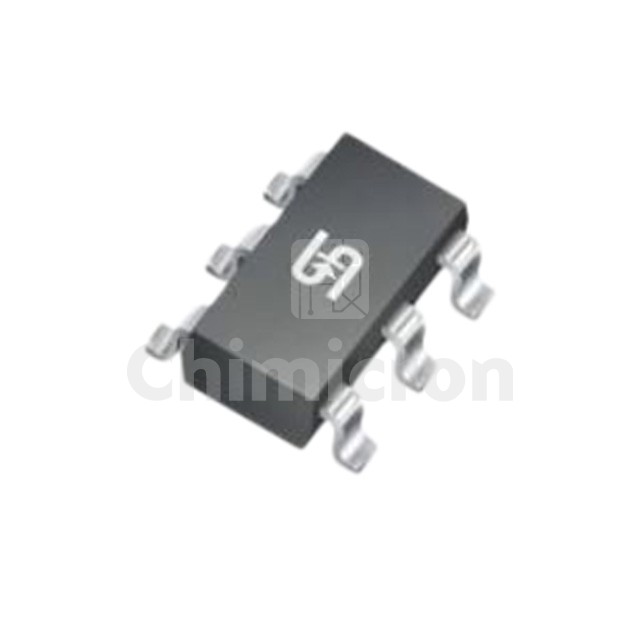

TSM3443CX6 RFG
Manufacturer: TSC (Taiwan Semiconductor)
Description: MOSFET P-CHANNEL 20V 4.7A SOT26
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:64754
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TSM3443CX6 RFG TSC (Taiwan Semiconductor) at chimicron.com. We have 64754 pieces of TSM3443CX6 RFG in stock available now. Submit an inquiry for TSM3443CX6 RFG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs60mOhm @ 4.7A, 4.5V
Vgs(th) (Max) @ Id1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds640 pF @ 10 V
FET Feature-
Power Dissipation (Max)2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-26
Package / CaseSOT-23-6
