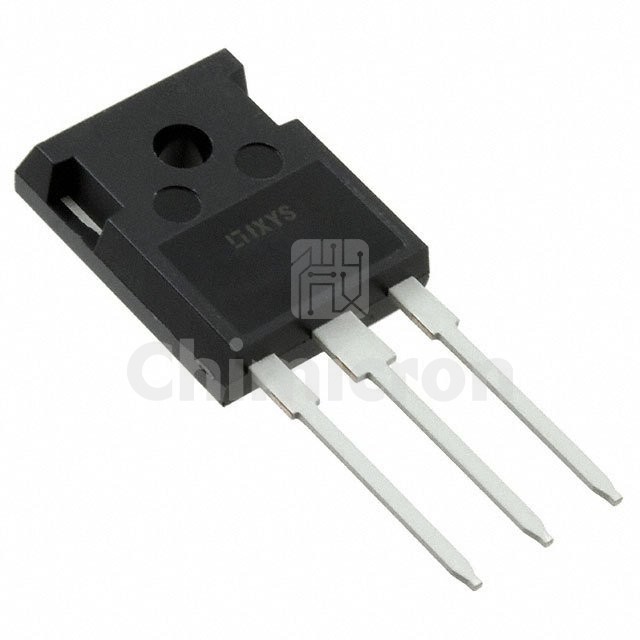

IXFH13N80
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 800V 13A TO247AD
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HiPerFET™
In Stock:3900
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXFH13N80 Wickmann / Littelfuse at chimicron.com. We have 3900 pieces of IXFH13N80 in stock available now. Submit an inquiry for IXFH13N80 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiPerFET™
PackageTube
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs800mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id4.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs155 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4200 pF @ 25 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247AD (IXFH)
Package / CaseTO-247-3
