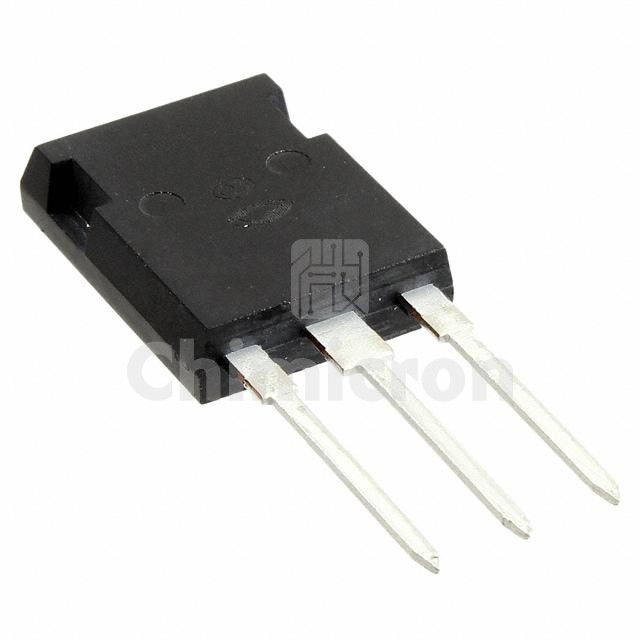

APT14M120B
APT14M120B

Manufacturer: Roving Networks / Microchip Technology

Description: MOSFET N-CH 1200V 14A TO247
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:20000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the APT14M120B Roving Networks / Microchip Technology at chimicron.com. We have 20000 pieces of APT14M120B in stock available now. Submit an inquiry for APT14M120B or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.2Ohm @ 7A, 10V
Vgs(th) (Max) @ Id5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs145 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds4765 pF @ 25 V
FET Feature-
Power Dissipation (Max)625W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247 [B]
Package / CaseTO-247-3
