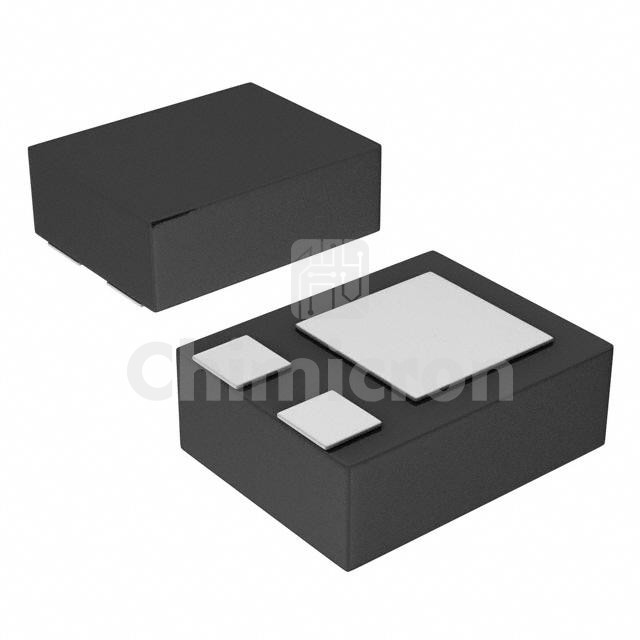

DMP21D5UFB4-7B
DMP21D5UFB4-7B

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET P-CH 20V 700MA 3DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:1986367
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMP21D5UFB4-7B Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 1986367 pieces of DMP21D5UFB4-7B in stock available now. Submit an inquiry for DMP21D5UFB4-7B or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C700mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.2V, 5V
Rds On (Max) @ Id, Vgs970mOhm @ 100mA, 5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs500 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds46.1 pF @ 10 V
FET Feature-
Power Dissipation (Max)460mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageX2-DFN1006-3
Package / Case3-XFDFN
