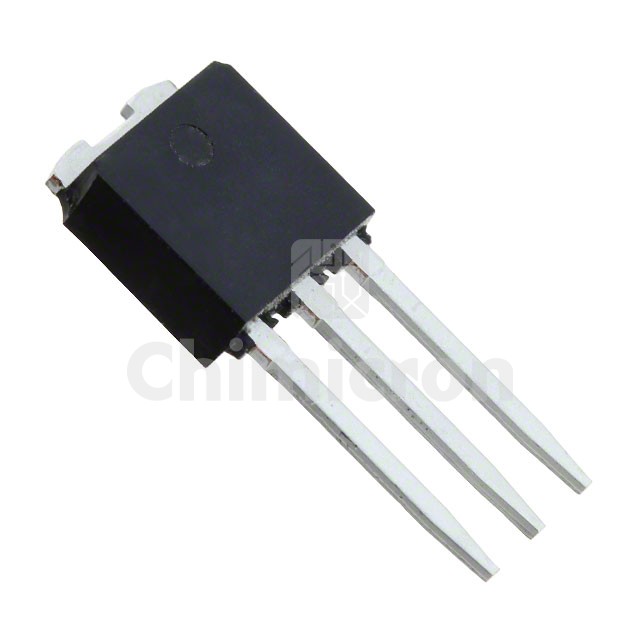

STD10PF06-1
Manufacturer: STMicroelectronics
Description: MOSFET P-CH 60V 10A IPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: STripFET™ II
In Stock:158
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STD10PF06-1 STMicroelectronics at chimicron.com. We have 158 pieces of STD10PF06-1 in stock available now. Submit an inquiry for STD10PF06-1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSTripFET™ II
PackageTube
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs200mOhm @ 5A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs21 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds850 pF @ 25 V
FET Feature-
Power Dissipation (Max)40W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
