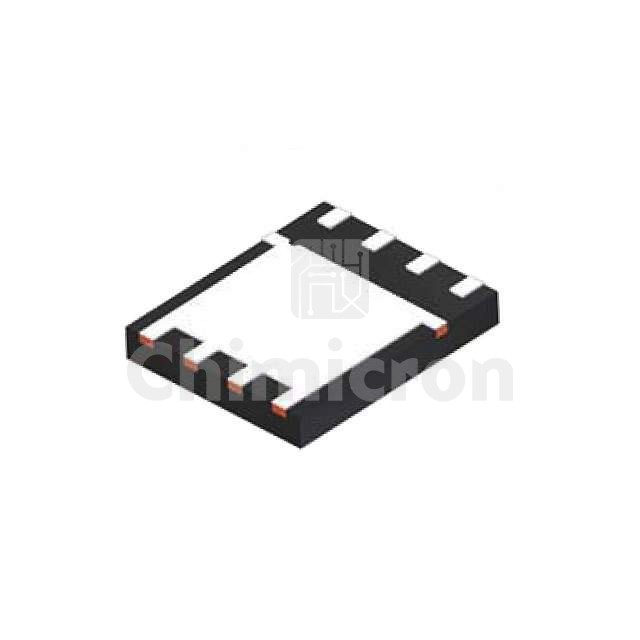

FDMS86350
FDMS86350

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 80V 25A/130A POWER56
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:53000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMS86350 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 53000 pieces of FDMS86350 in stock available now. Submit an inquiry for FDMS86350 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C25A (Ta), 130A (Tc)
Drive Voltage (Max Rds On, Min Rds On)8V, 10V
Rds On (Max) @ Id, Vgs2.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs155 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds10680 pF @ 40 V
FET Feature-
Power Dissipation (Max)2.7W (Ta), 156W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePower56
Package / Case8-PowerTDFN
