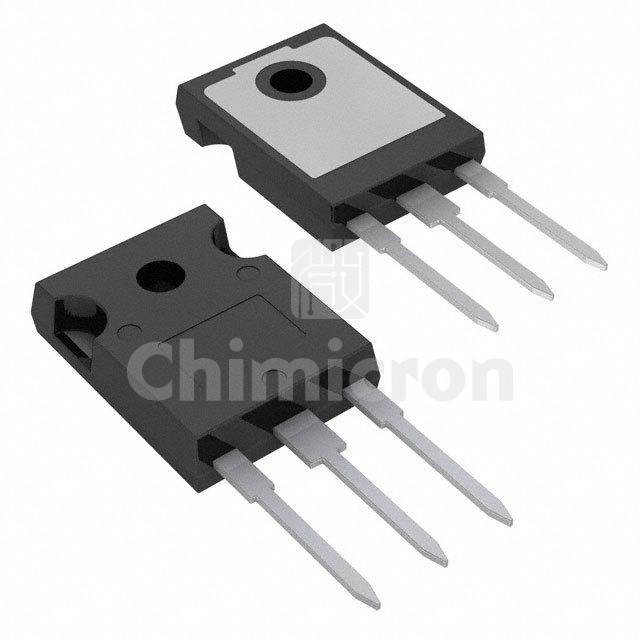

IRFP3306PBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 120A TO247AC
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:40000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRFP3306PBF IR (Infineon Technologies) at chimicron.com. We have 40000 pieces of IRFP3306PBF in stock available now. Submit an inquiry for IRFP3306PBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs4.2mOhm @ 75A, 10V
Vgs(th) (Max) @ Id4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs120 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4520 pF @ 50 V
FET Feature-
Power Dissipation (Max)220W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247AC
Package / CaseTO-247-3
