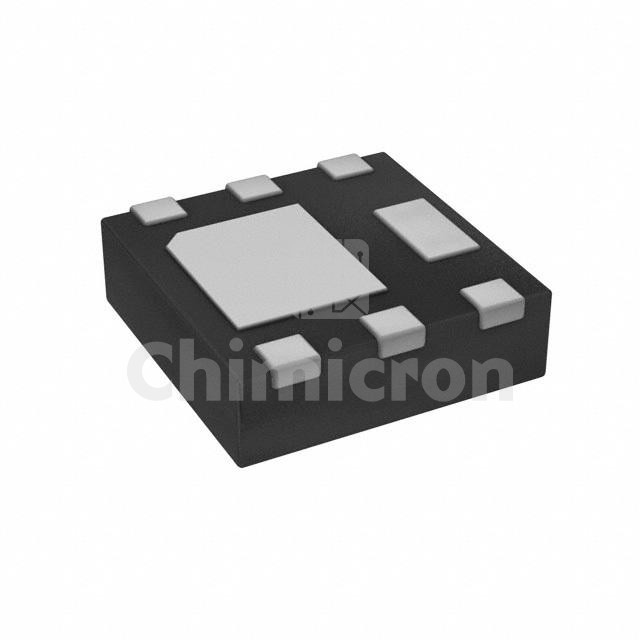

DMP1009UFDF-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET P-CH 12V 15A 6UDFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:47250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMP1009UFDF-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 47250 pieces of DMP1009UFDF-13 in stock available now. Submit an inquiry for DMP1009UFDF-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs11mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs44 nC @ 8 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds1860 pF @ 10 V
FET Feature-
Power Dissipation (Max)2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageU-DFN2020-6 (Type F)
Package / Case6-UDFN Exposed Pad
