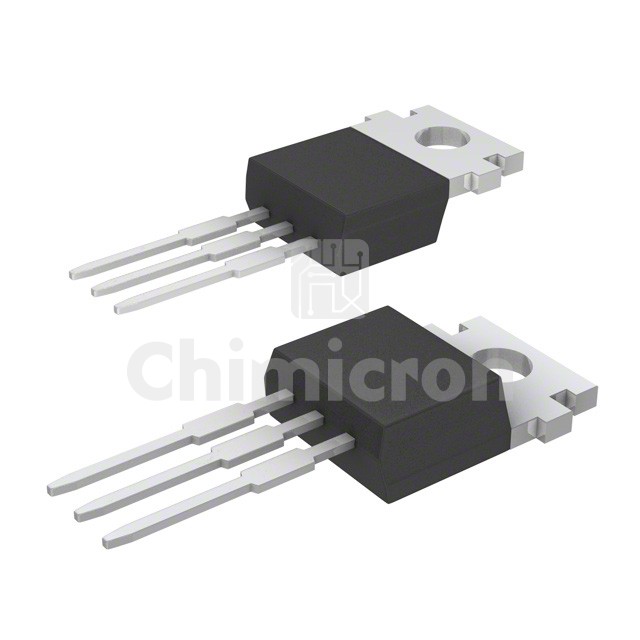

CSD18534KCS
Manufacturer: Texas
Description: MOSFET N-CH 60V 45A/100A TO220-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:8400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD18534KCS Texas at chimicron.com. We have 8400 pieces of CSD18534KCS in stock available now. Submit an inquiry for CSD18534KCS or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C45A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs9.5mOhm @ 40A, 10V
Vgs(th) (Max) @ Id2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1880 pF @ 30 V
FET Feature-
Power Dissipation (Max)107W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220-3
Package / CaseTO-220-3
