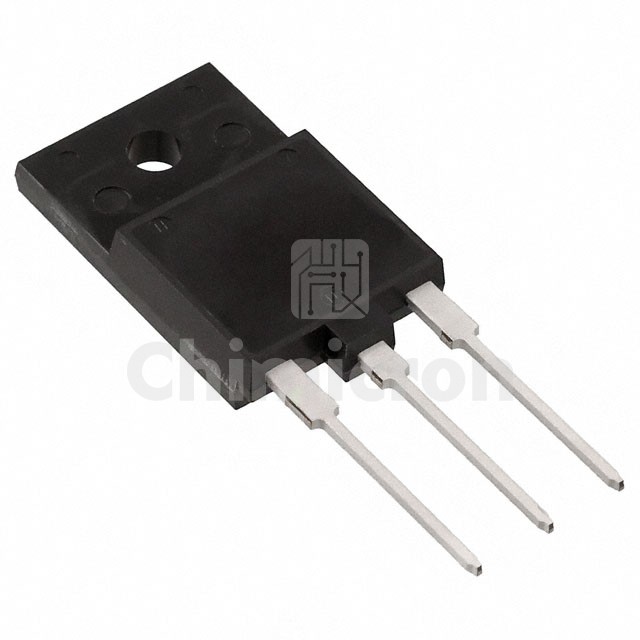

WPH4003-1E
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 1700V 2.5A TO3PF
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:692000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the WPH4003-1E Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 692000 pieces of WPH4003-1E in stock available now. Submit an inquiry for WPH4003-1E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1700 V
Current - Continuous Drain (Id) @ 25°C2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs10.5Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs48 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds850 pF @ 30 V
FET Feature-
Power Dissipation (Max)3W (Ta), 55W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3PF
Package / CaseTO-3P-3 Full Pack
