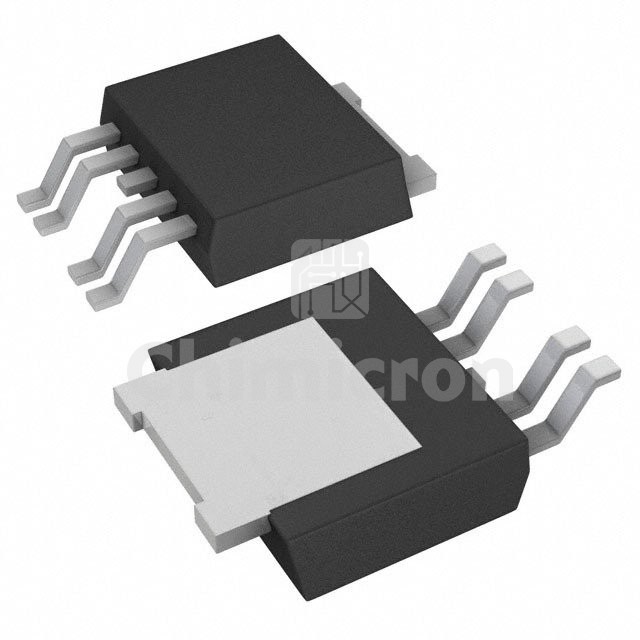

DMPH4015SK3Q-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET P-CH 40V 14A/45A TO252-4L
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:15270
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMPH4015SK3Q-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 15270 pieces of DMPH4015SK3Q-13 in stock available now. Submit an inquiry for DMPH4015SK3Q-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C14A (Ta), 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs11mOhm @ 9.8A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs91 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds4234 pF @ 20 V
FET Feature-
Power Dissipation (Max)1.7W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252-4L
Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD
