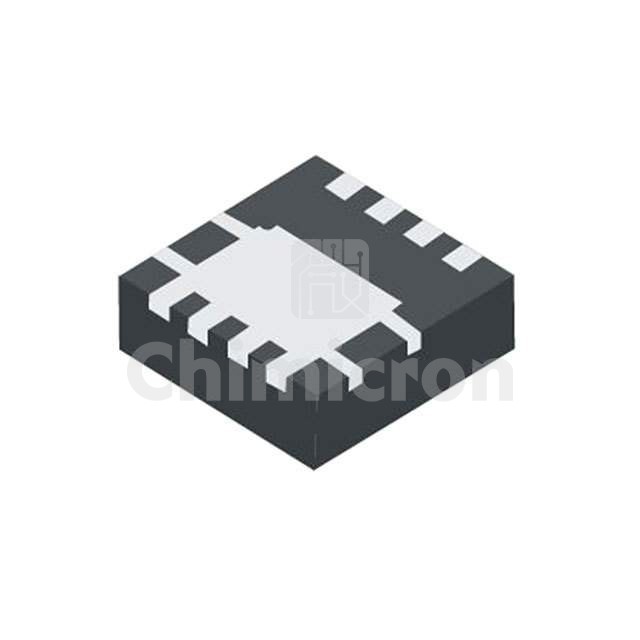

DMP6023LFGQ-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET P-CH 60V 7.7A PWRDI3333-8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMP6023LFGQ-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 300000 pieces of DMP6023LFGQ-13 in stock available now. Submit an inquiry for DMP6023LFGQ-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C7.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs25mOhm @ 5A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs53.1 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2569 pF @ 30 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature-55°C ~ 155°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8
Package / Case8-PowerVDFN
