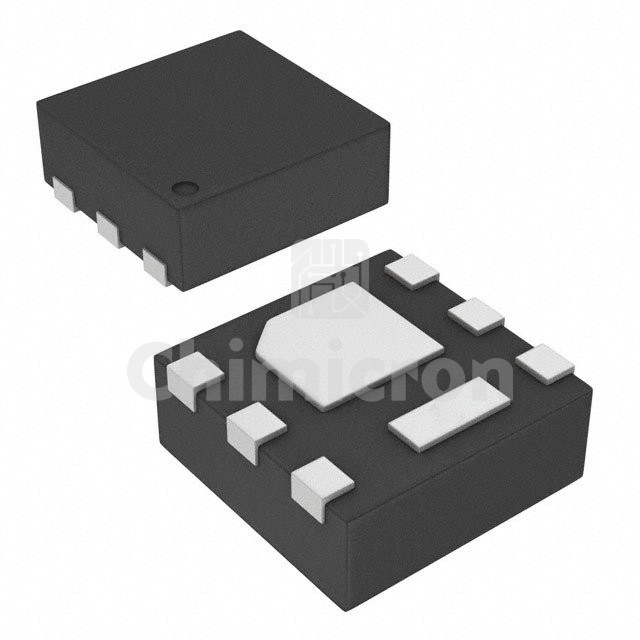

CSD19538Q2
Manufacturer: Texas
Description: MOSFET N-CH 100V 14.4A 6WSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:8085
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD19538Q2 Texas at chimicron.com. We have 8085 pieces of CSD19538Q2 in stock available now. Submit an inquiry for CSD19538Q2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C14.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs59mOhm @ 5A, 10V
Vgs(th) (Max) @ Id3.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds454 pF @ 50 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 20.2W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WSON (2x2)
Package / Case6-WDFN Exposed Pad
