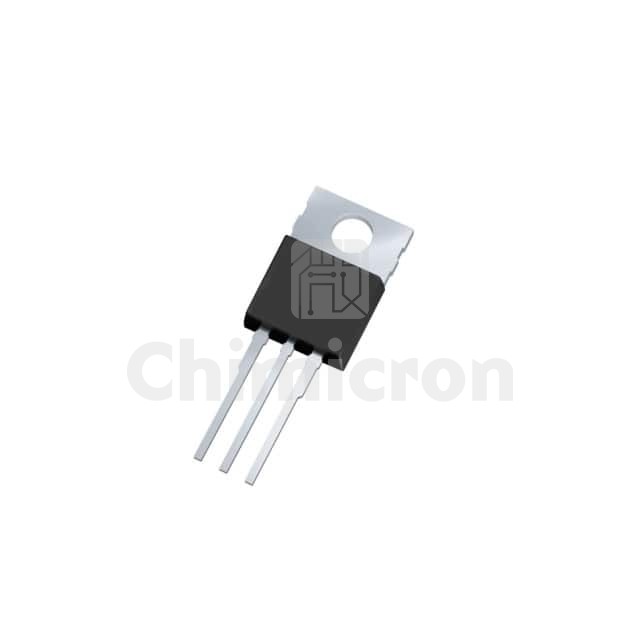

IPP120P04P4L03AKSA2
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 40V 120A TO220-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS®-P2
In Stock:40
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPP120P04P4L03AKSA2 IR (Infineon Technologies) at chimicron.com. We have 40 pieces of IPP120P04P4L03AKSA2 in stock available now. Submit an inquiry for IPP120P04P4L03AKSA2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS®-P2
PackageTube
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id2.2V @ 340µA
Gate Charge (Qg) (Max) @ Vgs234 nC @ 10 V
Vgs (Max)+5V, -16V
Input Capacitance (Ciss) (Max) @ Vds15000 pF @ 25 V
FET Feature-
Power Dissipation (Max)136W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO220-3-1
Package / CaseTO-220-3
