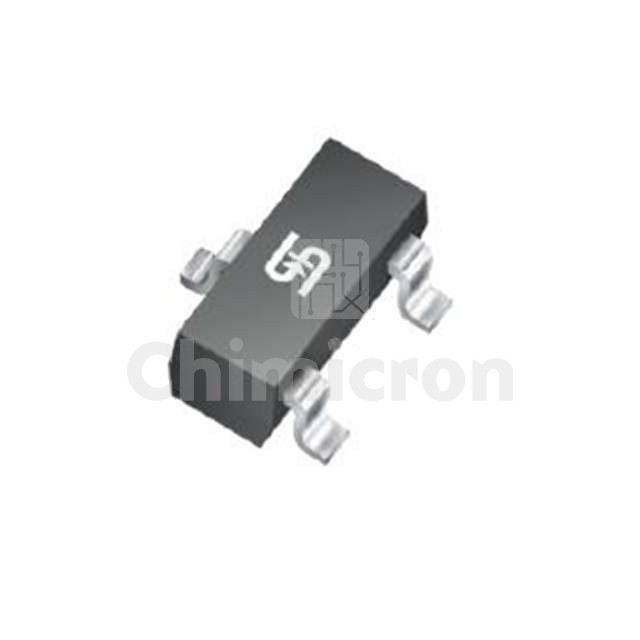

TSM3401CX RFG
Manufacturer: TSC (Taiwan Semiconductor)
Description: MOSFET P-CHANNEL 30V 3A SOT23
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:2076
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TSM3401CX RFG TSC (Taiwan Semiconductor) at chimicron.com. We have 2076 pieces of TSM3401CX RFG in stock available now. Submit an inquiry for TSM3401CX RFG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs60mOhm @ 3A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs2.7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds551.57 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.25W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23
Package / CaseTO-236-3, SC-59, SOT-23-3
