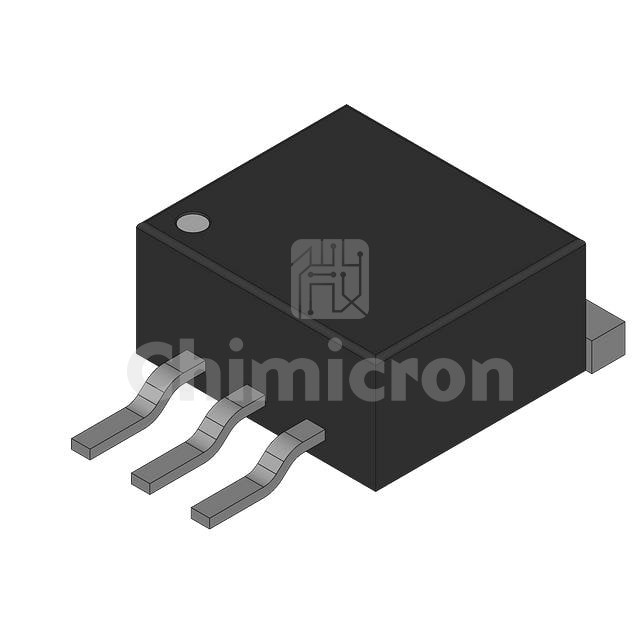

IPD50N06S4L08ATMA2
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 50A TO252-31
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, OptiMOS™
In Stock:55000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPD50N06S4L08ATMA2 IR (Infineon Technologies) at chimicron.com. We have 55000 pieces of IPD50N06S4L08ATMA2 in stock available now. Submit an inquiry for IPD50N06S4L08ATMA2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7.8mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2.2V @ 35µA
Gate Charge (Qg) (Max) @ Vgs64 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds4780 pF @ 25 V
FET Feature-
Power Dissipation (Max)71W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-3-11
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
