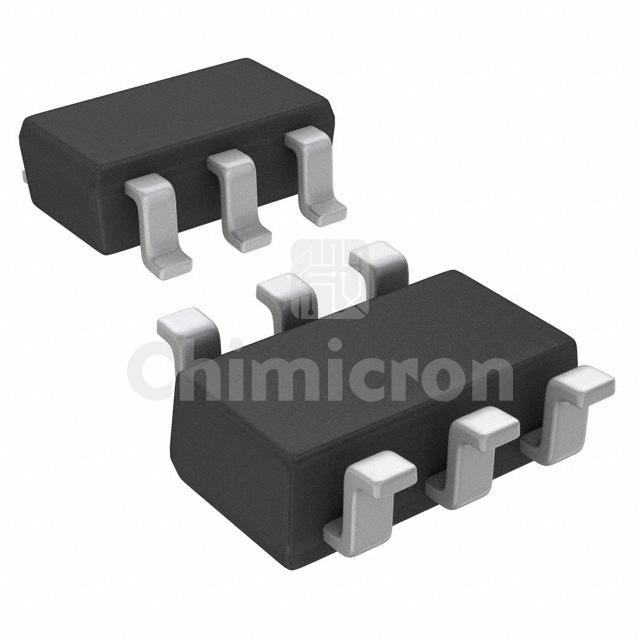

TPC6110(TE85L,F,M)
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: MOSFET P-CH 30V 4.5A VS-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: U-MOSVI
In Stock:2100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPC6110(TE85L,F,M) Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 2100 pieces of TPC6110(TE85L,F,M) in stock available now. Submit an inquiry for TPC6110(TE85L,F,M) or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesU-MOSVI
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs56mOhm @ 2.2A, 10V
Vgs(th) (Max) @ Id2V @ 100µA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds510 pF @ 10 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageVS-6 (2.9x2.8)
Package / CaseSOT-23-6 Thin, TSOT-23-6
