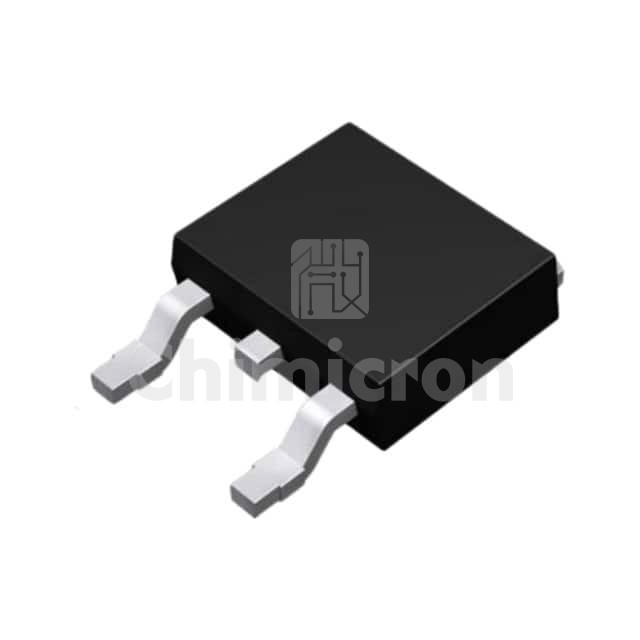

RD3G07BATTL1
Manufacturer: ROHM Semiconductor
Description: PCH -40V -70A POWER MOSFET - RD3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:5250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the RD3G07BATTL1 ROHM Semiconductor at chimicron.com. We have 5250 pieces of RD3G07BATTL1 in stock available now. Submit an inquiry for RD3G07BATTL1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C70A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7.1mOhm @ 70A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs105 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5550 pF @ 20 V
FET Feature-
Power Dissipation (Max)101W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
