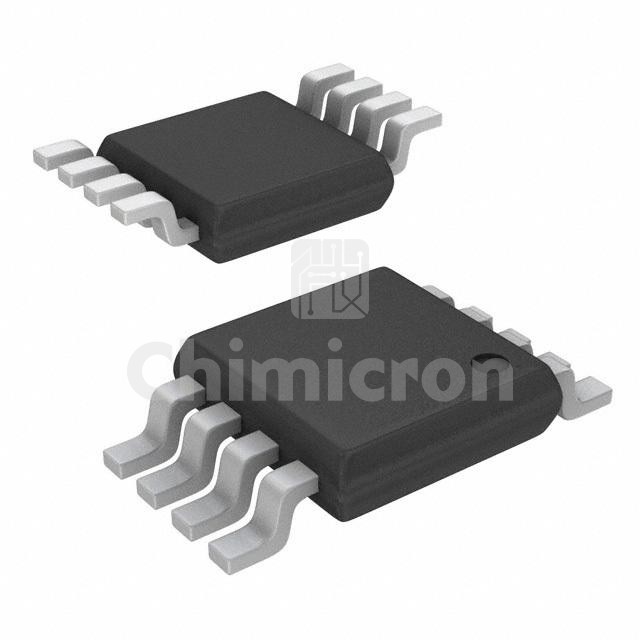

ZXM64P02XTA
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET P-CH 20V 3.5A 8MSOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZXM64P02XTA Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 100000 pieces of ZXM64P02XTA in stock available now. Submit an inquiry for ZXM64P02XTA or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.7V, 4.5V
Rds On (Max) @ Id, Vgs90mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.9 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds900 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MSOP
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
