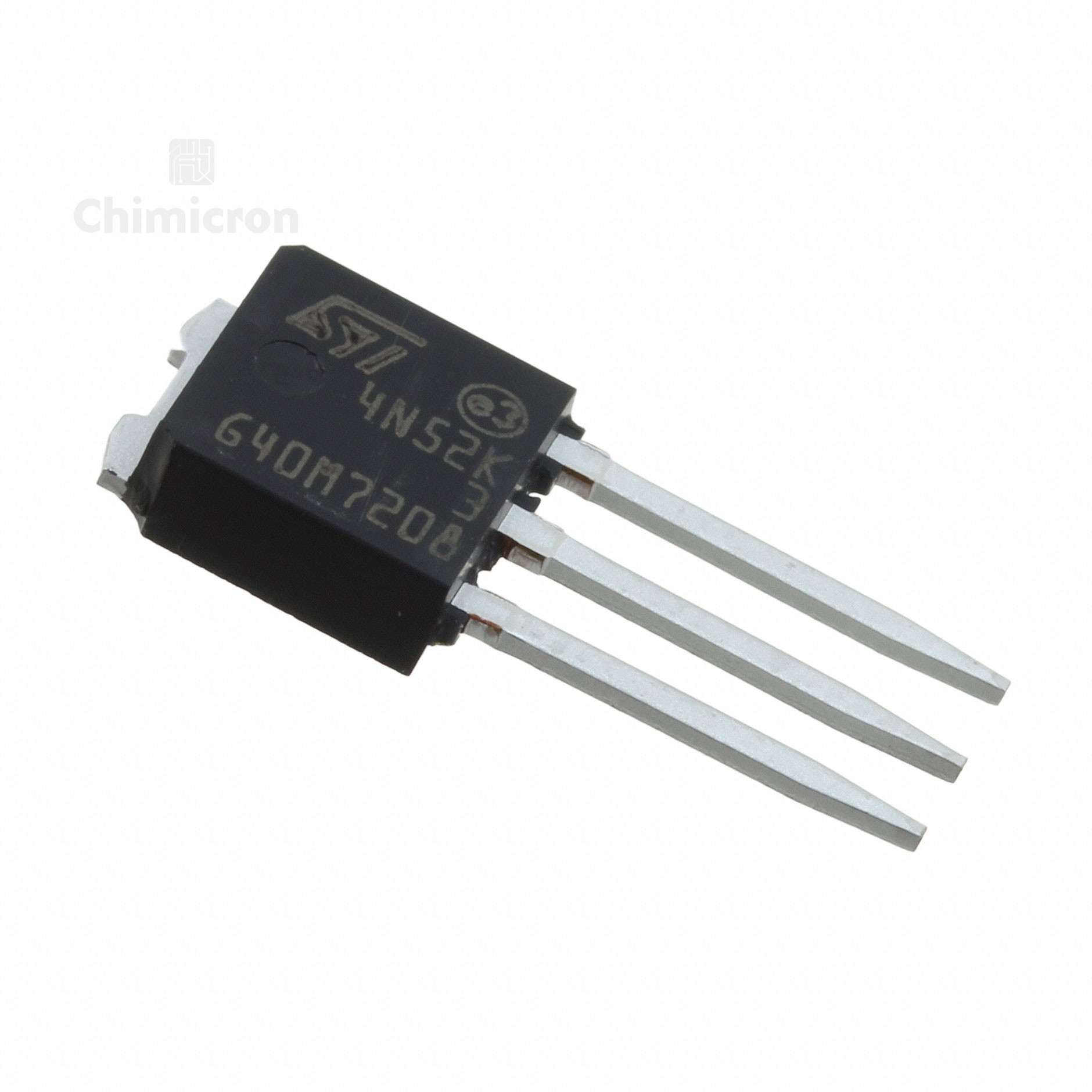

STU4N52K3
STU4N52K3

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 525V 2.5A IPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: SuperMESH3™
In Stock:5250
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STU4N52K3 STMicroelectronics at chimicron.com. We have 5250 pieces of STU4N52K3 in stock available now. Submit an inquiry for STU4N52K3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSuperMESH3™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)525 V
Current - Continuous Drain (Id) @ 25°C2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.6Ohm @ 1.25A, 10V
Vgs(th) (Max) @ Id4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds334 pF @ 100 V
FET Feature-
Power Dissipation (Max)45W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
