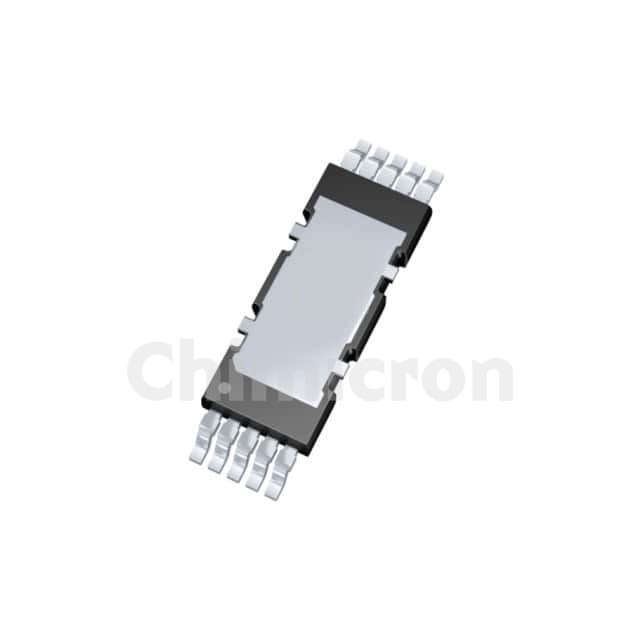

IPDD60R170CFD7XTMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 600V 19A HDSOP-10
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™ CFD7
In Stock:3790
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPDD60R170CFD7XTMA1 IR (Infineon Technologies) at chimicron.com. We have 3790 pieces of IPDD60R170CFD7XTMA1 in stock available now. Submit an inquiry for IPDD60R170CFD7XTMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™ CFD7
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs170mOhm @ 4.9A, 10V
Vgs(th) (Max) @ Id4.5V @ 240µA
Gate Charge (Qg) (Max) @ Vgs23 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1016 pF @ 400 V
FET Feature-
Power Dissipation (Max)137W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-HDSOP-10-1
Package / Case10-PowerSOP Module
