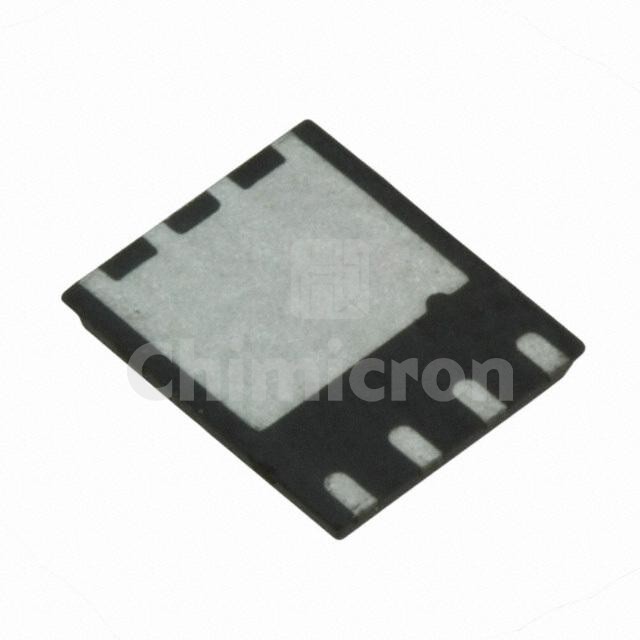

IRLH5034TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 40V 29A/100A 8PQFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:9463
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRLH5034TRPBF IR (Infineon Technologies) at chimicron.com. We have 9463 pieces of IRLH5034TRPBF in stock available now. Submit an inquiry for IRLH5034TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C29A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs82 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds4730 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.6W (Ta), 156W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerVDFN
