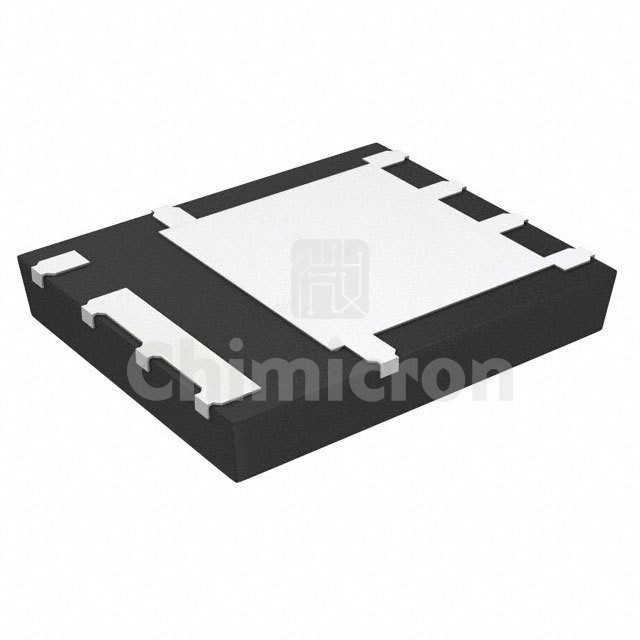

BSC014N04LSIATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 40V 31A/100A TDSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:63000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSC014N04LSIATMA1 IR (Infineon Technologies) at chimicron.com. We have 63000 pieces of BSC014N04LSIATMA1 in stock available now. Submit an inquiry for BSC014N04LSIATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C31A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.45mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs55 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4000 pF @ 20 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 96W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8 FL
Package / Case8-PowerTDFN
