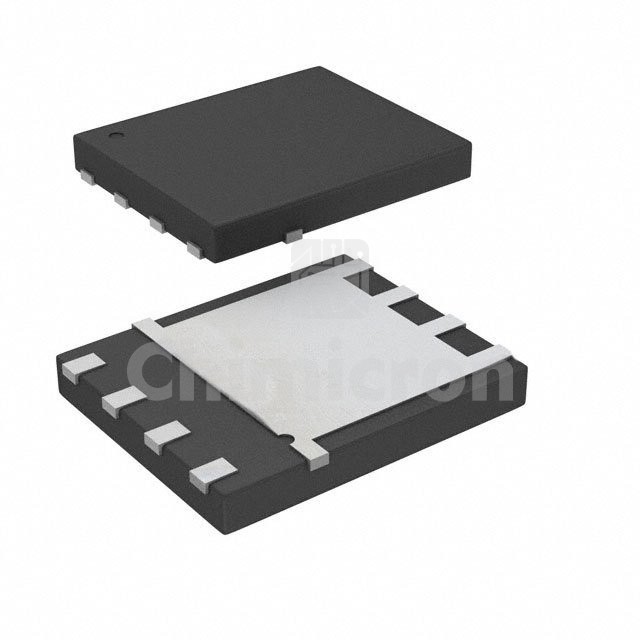

FDMS003N08C
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 80V 22A/147A POWER56
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:41222
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMS003N08C Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 41222 pieces of FDMS003N08C in stock available now. Submit an inquiry for FDMS003N08C or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C22A (Ta), 147A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs3.1mOhm @ 56A, 10V
Vgs(th) (Max) @ Id4V @ 310µA
Gate Charge (Qg) (Max) @ Vgs73 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5350 pF @ 40 V
FET Feature-
Power Dissipation (Max)2.7W (Ta), 125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePower56
Package / Case8-PowerTDFN
