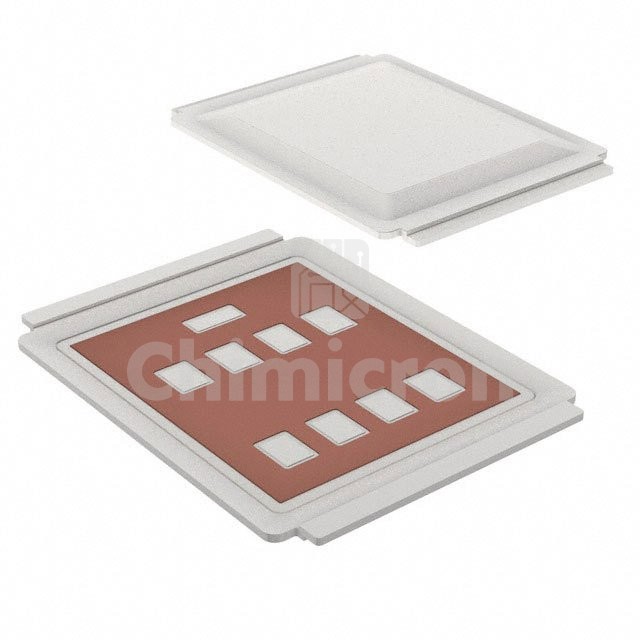

AUIRF7749L2TR
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 36A DIRECTFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, OptiMOS™
In Stock:4200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AUIRF7749L2TR IR (Infineon Technologies) at chimicron.com. We have 4200 pieces of AUIRF7749L2TR in stock available now. Submit an inquiry for AUIRF7749L2TR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C36A (Ta), 345A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.5mOhm @ 120A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs275 nC @ 10 V
Vgs (Max)60V
Input Capacitance (Ciss) (Max) @ Vds10655 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 341W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET L8
Package / CaseDirectFET™ Isometric L8
