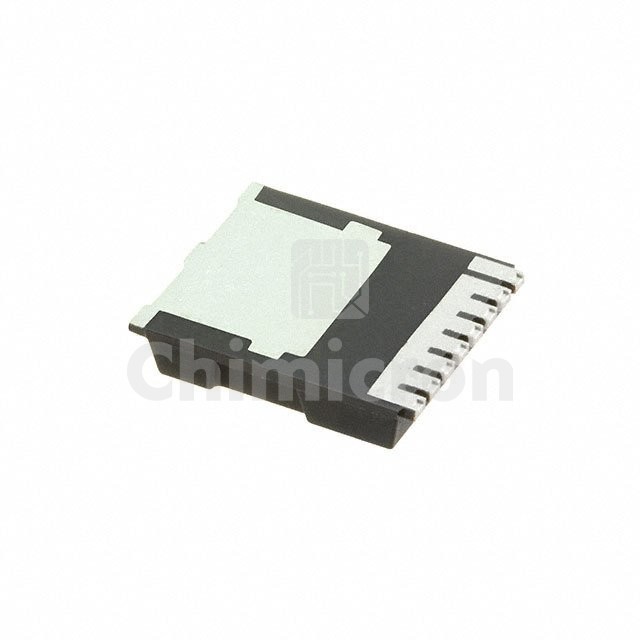

IPT015N10N5ATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 100V 300A 8HSOF
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPT015N10N5ATMA1 IR (Infineon Technologies) at chimicron.com. We have 5000 pieces of IPT015N10N5ATMA1 in stock available now. Submit an inquiry for IPT015N10N5ATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C300A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs1.5mOhm @ 150A, 10V
Vgs(th) (Max) @ Id3.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs211 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds16000 pF @ 50 V
FET Feature-
Power Dissipation (Max)375W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-HSOF-8-1
Package / Case8-PowerSFN
