PMN27UP,115
Manufacturer: Rochester Electronics
Description: SMALL SIGNAL FIELD-EFFECT TRANSI
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:12600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMN27UP,115 Rochester Electronics at chimicron.com. We have 12600 pieces of PMN27UP,115 in stock available now. Submit an inquiry for PMN27UP,115 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C5.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs32mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs31 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds2.34 pF @ 10 V
FET Feature-
Power Dissipation (Max)540mW (Ta), 6.25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount

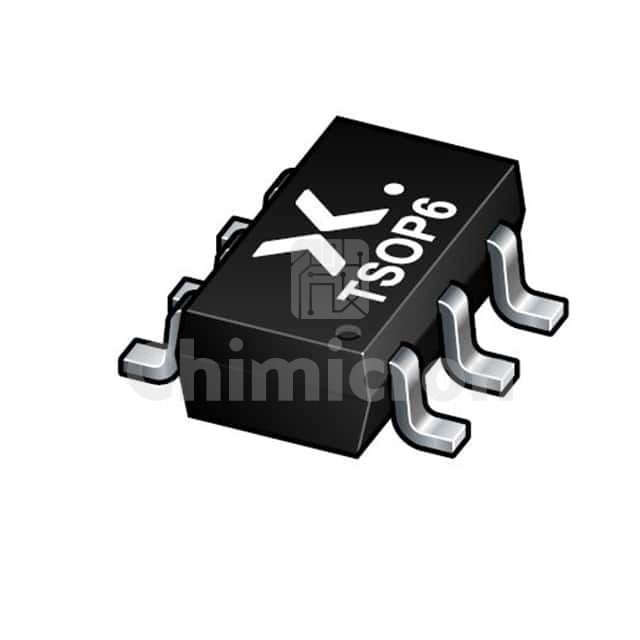

Supplier Device Package6-TSOP
Package / CaseSC-74, SOT-457
