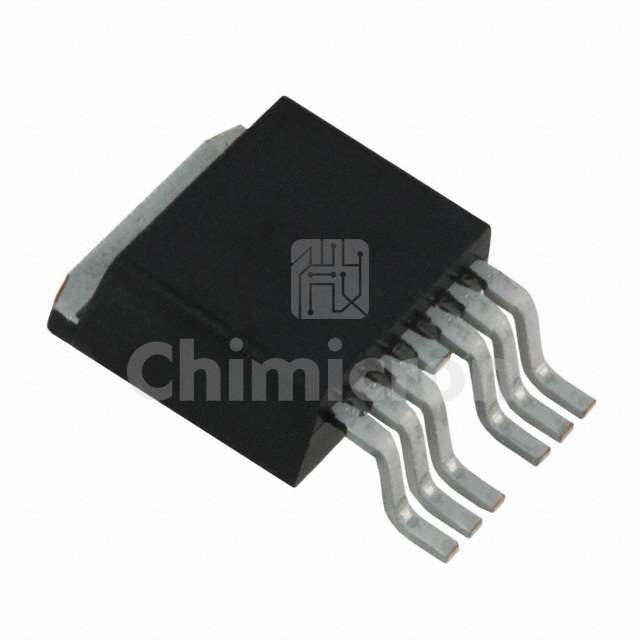

IPB180N04S401ATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 40V 180A TO263-7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:2000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPB180N04S401ATMA1 IR (Infineon Technologies) at chimicron.com. We have 2000 pieces of IPB180N04S401ATMA1 in stock available now. Submit an inquiry for IPB180N04S401ATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.3mOhm @ 100A, 10V
Vgs(th) (Max) @ Id4V @ 140µA
Gate Charge (Qg) (Max) @ Vgs176 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds14000 pF @ 25 V
FET Feature-
Power Dissipation (Max)188W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-7-3
Package / CaseTO-263-7, D²Pak (6 Leads + Tab)
