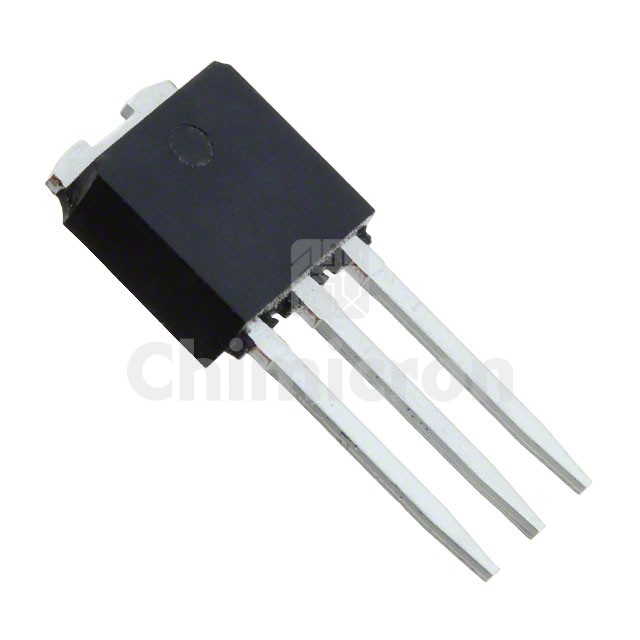

STD3NK60Z-1
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 600V 2.4A IPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: SuperMESH™
In Stock:5250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STD3NK60Z-1 STMicroelectronics at chimicron.com. We have 5250 pieces of STD3NK60Z-1 in stock available now. Submit an inquiry for STD3NK60Z-1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSuperMESH™
PackageTube
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C2.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs3.6Ohm @ 1.2A, 10V
Vgs(th) (Max) @ Id4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs11.8 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds311 pF @ 25 V
FET Feature-
Power Dissipation (Max)45W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
