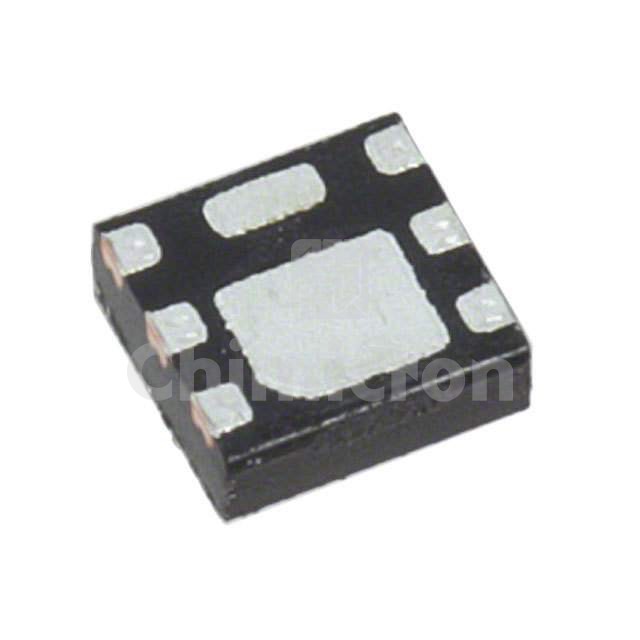

SSM6K513NU,LF
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: MOSFET N-CH 30V 15A 6UDFNB
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: U-MOSIX-H
In Stock:10616
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SSM6K513NU,LF Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 10616 pieces of SSM6K513NU,LF in stock available now. Submit an inquiry for SSM6K513NU,LF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesU-MOSIX-H
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs8.9mOhm @ 4A, 10V
Vgs(th) (Max) @ Id2.1V @ 100µA
Gate Charge (Qg) (Max) @ Vgs7.5 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1130 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.25W (Ta)
Operating Temperature150°C (TA)
Mounting TypeSurface Mount
Supplier Device Package6-UDFNB (2x2)
Package / Case6-WDFN Exposed Pad
