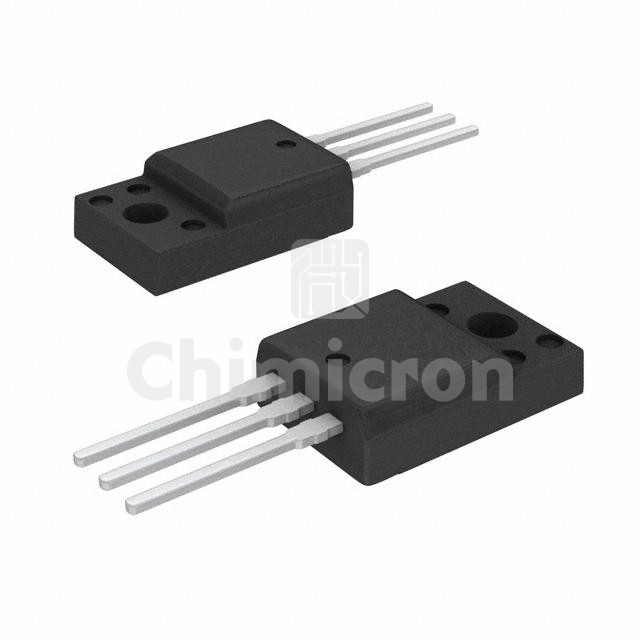

FCPF22N60NT
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 600V 22A TO220F
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: SupreMOS™
In Stock:2127
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FCPF22N60NT Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 2127 pieces of FCPF22N60NT in stock available now. Submit an inquiry for FCPF22N60NT or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSupreMOS™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs165mOhm @ 11A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs45 nC @ 10 V
Vgs (Max)±45V
Input Capacitance (Ciss) (Max) @ Vds1950 pF @ 100 V
FET Feature-
Power Dissipation (Max)39W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220F
Package / CaseTO-220-3 Full Pack
