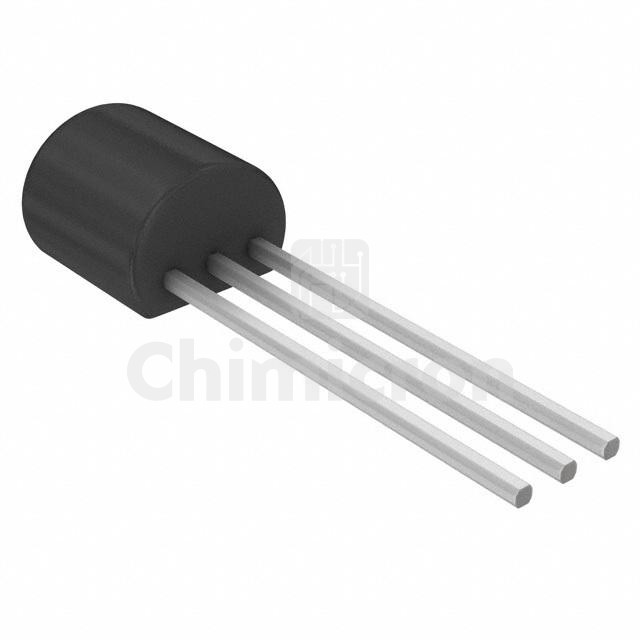

ZVNL120A
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 200V 180MA TO92-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:1500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZVNL120A Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 1500 pieces of ZVNL120A in stock available now. Submit an inquiry for ZVNL120A or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C180mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)3V, 5V
Rds On (Max) @ Id, Vgs10Ohm @ 250mA, 5V
Vgs(th) (Max) @ Id1.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds85 pF @ 25 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-92
Package / CaseTO-226-3, TO-92-3 (TO-226AA)
