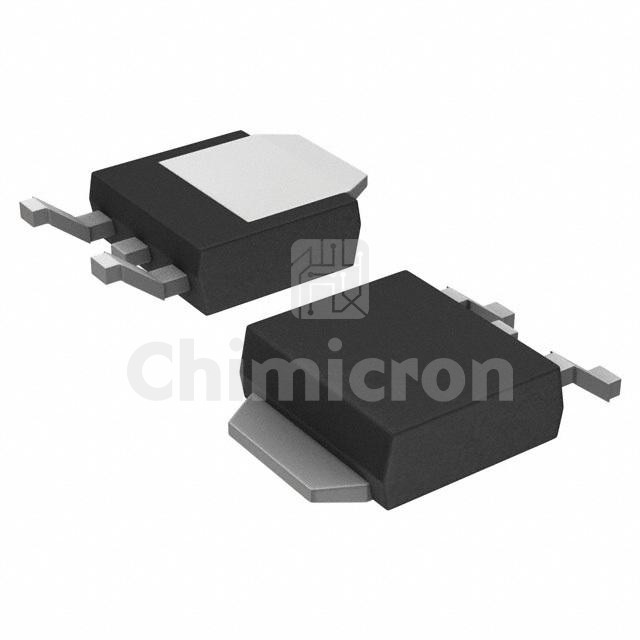

SVD5867NLT4G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 60V 22A DPAK-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:462000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SVD5867NLT4G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 462000 pieces of SVD5867NLT4G in stock available now. Submit an inquiry for SVD5867NLT4G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs39mOhm @ 11A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs15 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds675 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.3W (Ta), 43W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK-3
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
