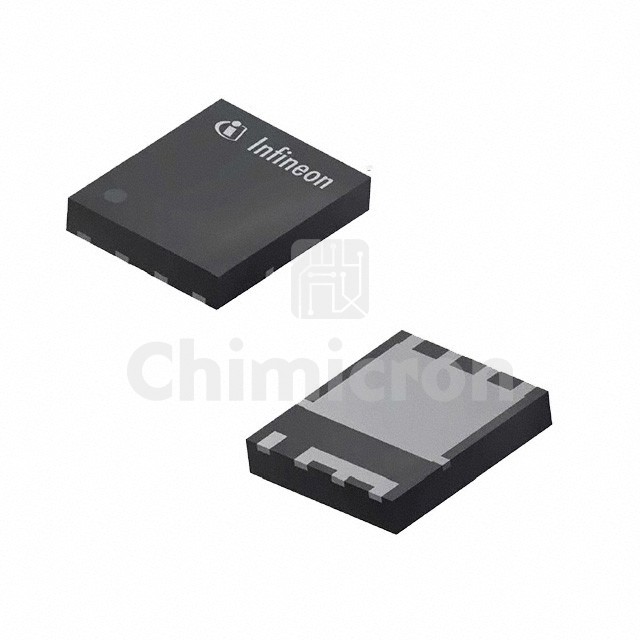

BSC220N20NSFDATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 200V 52A TSON-8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:4846
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSC220N20NSFDATMA1 IR (Infineon Technologies) at chimicron.com. We have 4846 pieces of BSC220N20NSFDATMA1 in stock available now. Submit an inquiry for BSC220N20NSFDATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C52A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs22mOhm @ 52A, 10V
Vgs(th) (Max) @ Id4V @ 137µA
Gate Charge (Qg) (Max) @ Vgs43 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3680 pF @ 100 V
FET Feature-
Power Dissipation (Max)214W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TSON-8-3
Package / Case8-PowerTDFN
