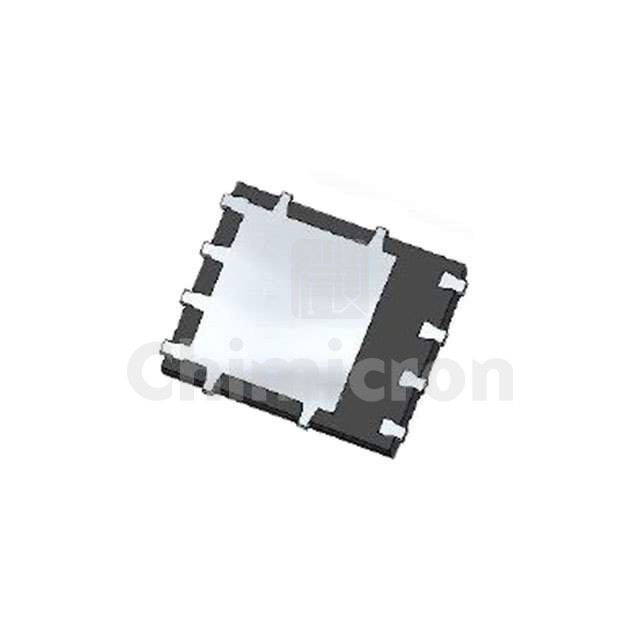

DMT10H009SPS-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 100V PWRDI5060
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:6000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMT10H009SPS-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 6000 pieces of DMT10H009SPS-13 in stock available now. Submit an inquiry for DMT10H009SPS-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C14A (Ta), 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs8.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs30 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2085 pF @ 50 V
FET Feature-
Power Dissipation (Max)1.3W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI5060-8
Package / Case8-PowerTDFN
