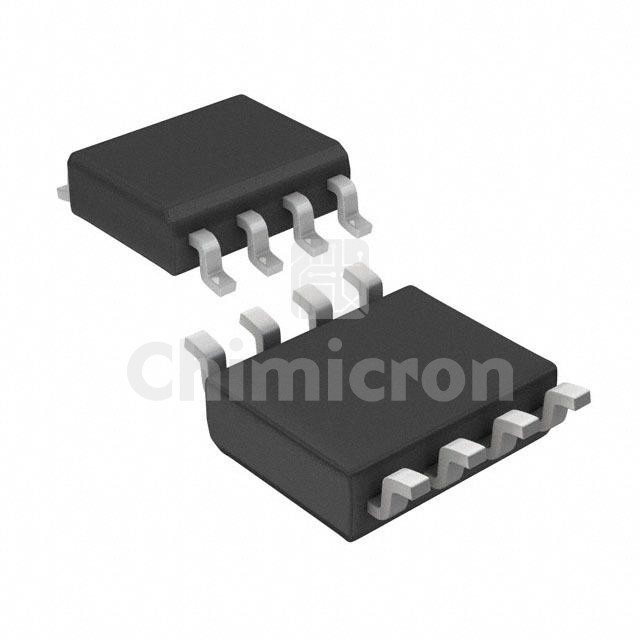

STS7P4LLF6
Manufacturer: STMicroelectronics
Description: MOSFET P-CH 40V 7A POWER8-SO
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: STripFET™ F6
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STS7P4LLF6 STMicroelectronics at chimicron.com. We have 500000 pieces of STS7P4LLF6 in stock available now. Submit an inquiry for STS7P4LLF6 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSTripFET™ F6
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C7A (Tj)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs20.5mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs22 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2850 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.7W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SO
Package / Case8-SOIC (0.154", 3.90mm Width)
