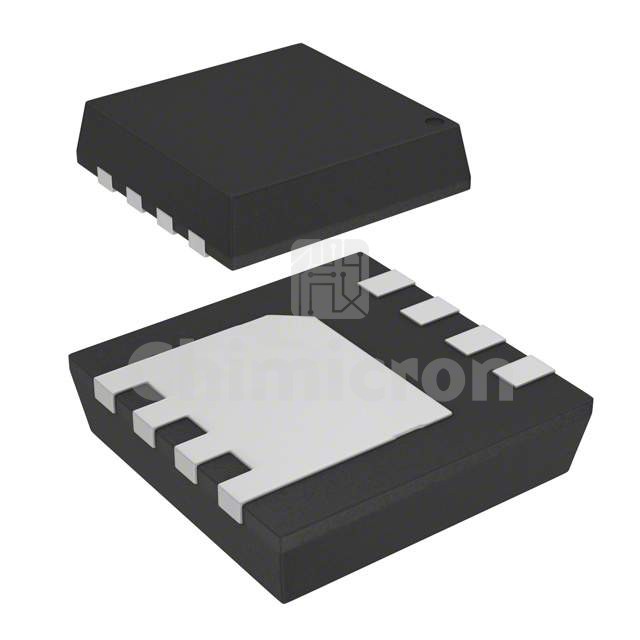

AON7510
Manufacturer: Alpha and Omega Semiconductor, Inc.
Description: MOSFET N-CH 30V 45A/75A 8DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: AlphaMOS
In Stock:1219600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AON7510 Alpha and Omega Semiconductor, Inc. at chimicron.com. We have 1219600 pieces of AON7510 in stock available now. Submit an inquiry for AON7510 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAlphaMOS
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C45A (Ta), 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.25mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs140 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4500 pF @ 15 V
FET Feature-
Power Dissipation (Max)4.1W (Ta), 46W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN-EP (3x3)
Package / Case8-PowerVDFN
