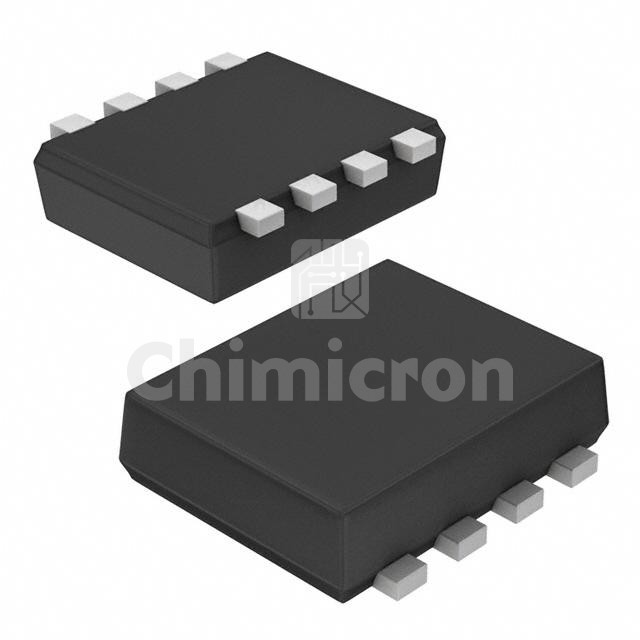

QS8J13TR
QS8J13TR

Manufacturer: ROHM Semiconductor

Description: MOSFET 2P-CH 12V 5.5A TSMT8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
In Stock:9450
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the QS8J13TR ROHM Semiconductor at chimicron.com. We have 9450 pieces of QS8J13TR in stock available now. Submit an inquiry for QS8J13TR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)12V
Current - Continuous Drain (Id) @ 25°C5.5A
Rds On (Max) @ Id, Vgs22mOhm @ 5.5A, 4.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs60nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds6300pF @ 6V
Power - Max1.25W
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead
Supplier Device PackageTSMT8
