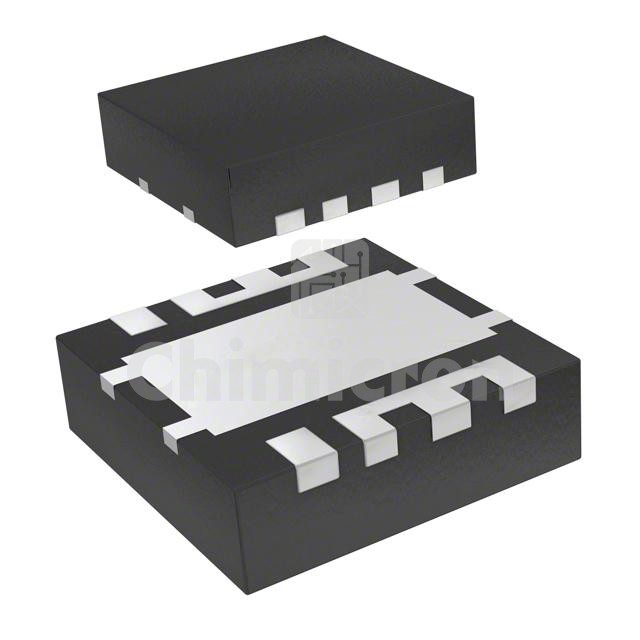

CSD85312Q3E
Manufacturer: Texas
Description: MOSFET 2N-CH 20V 39A 8VSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: NexFET™
In Stock:96000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD85312Q3E Texas at chimicron.com. We have 96000 pieces of CSD85312Q3E in stock available now. Submit an inquiry for CSD85312Q3E or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual) Common Source
FET FeatureLogic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C39A
Rds On (Max) @ Id, Vgs12.4mOhm @ 10A, 8V
Vgs(th) (Max) @ Id1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs15.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds2390pF @ 10V
Power - Max2.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device Package8-VSON (3.3x3.3)
