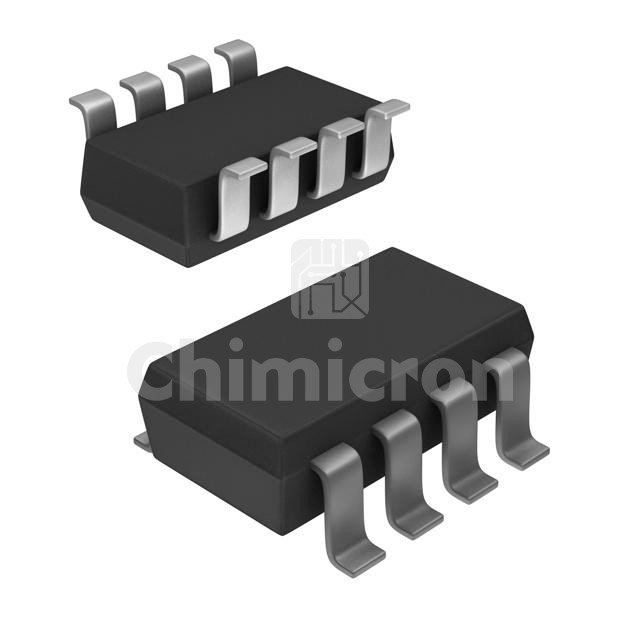

ZXMHC3A01T8TA
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET 2N/2P-CH 30V 2.7A/2A SM8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: -
In Stock:1050
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZXMHC3A01T8TA Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 1050 pieces of ZXMHC3A01T8TA in stock available now. Submit an inquiry for ZXMHC3A01T8TA or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N and 2 P-Channel (H-Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C2.7A, 2A
Rds On (Max) @ Id, Vgs120mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds190pF @ 25V
Power - Max1.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-223-8
Supplier Device PackageSM-8
