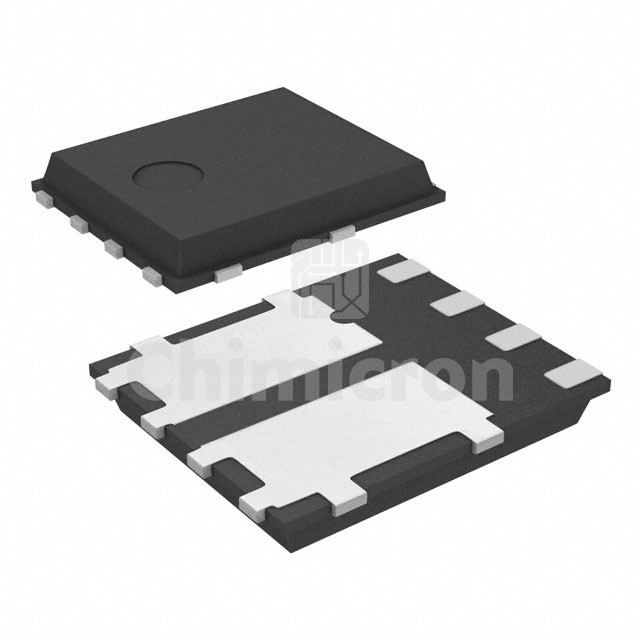

STL7DN6LF3
Manufacturer: STMicroelectronics
Description: MOSFET 2N-CH 60V 20A 5X6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: Automotive, AEC-Q101, STripFET™ III
In Stock:250000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STL7DN6LF3 STMicroelectronics at chimicron.com. We have 250000 pieces of STL7DN6LF3 in stock available now. Submit an inquiry for STL7DN6LF3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, STripFET™ III
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C20A
Rds On (Max) @ Id, Vgs43mOhm @ 3A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds432pF @ 25V
Power - Max52W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePowerFlat™ (5x6)
