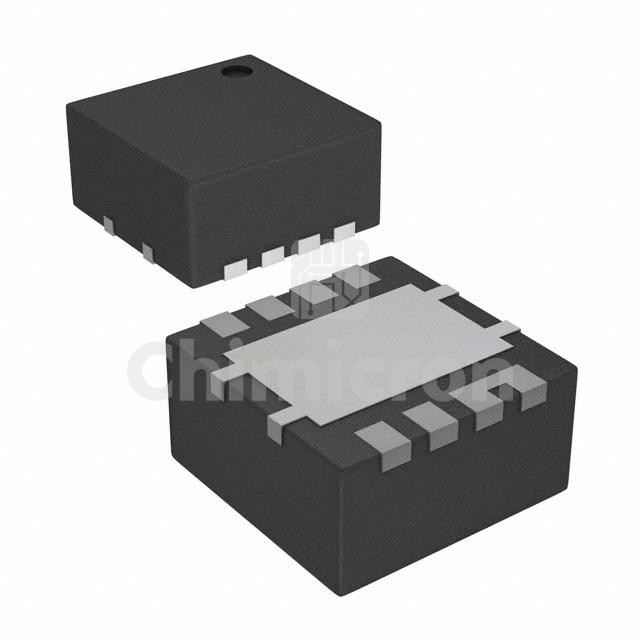

CSD86330Q3D
Manufacturer: Texas
Description: MOSFET 2N-CH 25V 20A 8LSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: NexFET™
In Stock:1000000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD86330Q3D Texas at chimicron.com. We have 1000000 pieces of CSD86330Q3D in stock available now. Submit an inquiry for CSD86330Q3D or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C20A
Rds On (Max) @ Id, Vgs9.6mOhm @ 14A, 8V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds920pF @ 12.5V
Power - Max6W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerLDFN
Supplier Device Package8-LSON (3.3x3.3)
