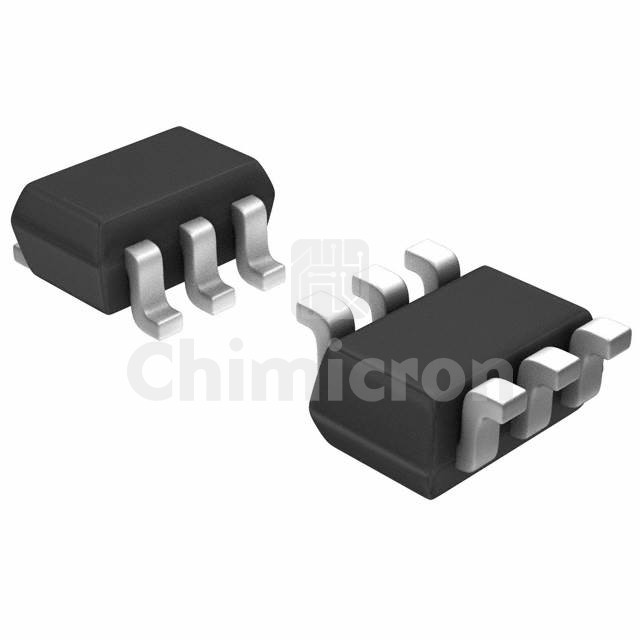

FDG6301N-F085
FDG6301N-F085

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET 2N-CH 25V 0.22A SC70-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: Automotive, AEC-Q101
In Stock:51000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDG6301N-F085 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 51000 pieces of FDG6301N-F085 in stock available now. Submit an inquiry for FDG6301N-F085 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C220mA
Rds On (Max) @ Id, Vgs4Ohm @ 220mA, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds9.5pF @ 10V
Power - Max300mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSC-88 (SC-70-6)
