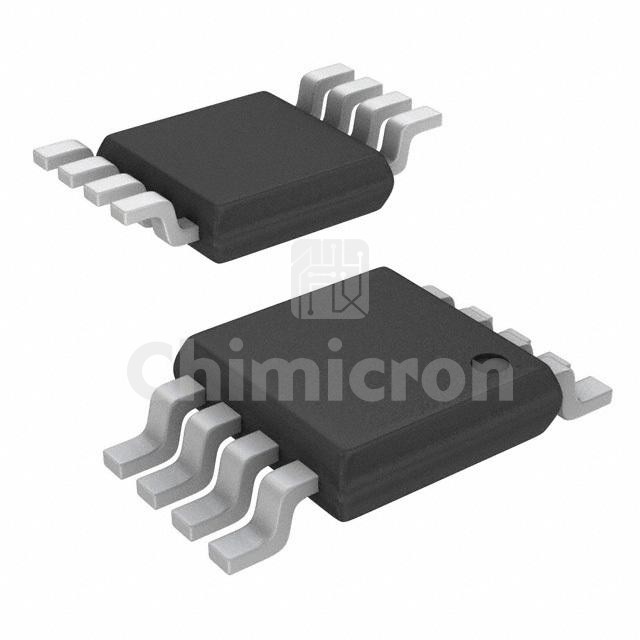

IRF7509TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N/P-CH 30V 2.7A/2A MICRO8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: HEXFET®
In Stock:16800
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF7509TRPBF IR (Infineon Technologies) at chimicron.com. We have 16800 pieces of IRF7509TRPBF in stock available now. Submit an inquiry for IRF7509TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN and P-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C2.7A, 2A
Rds On (Max) @ Id, Vgs110mOhm @ 1.7A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds210pF @ 25V
Power - Max1.25W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device PackageMicro8™
