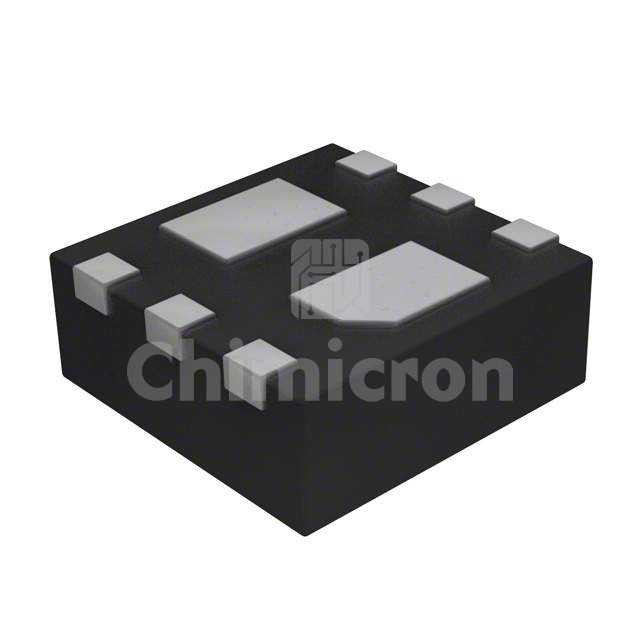

CSD85301Q2
Manufacturer: Texas
Description: MOSFET 2N-CH 20V 5A 6WSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Arrays
Series: NexFET™
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD85301Q2 Texas at chimicron.com. We have 10500 pieces of CSD85301Q2 in stock available now. Submit an inquiry for CSD85301Q2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C5A
Rds On (Max) @ Id, Vgs27mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds469pF @ 10V
Power - Max2.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-WSON (2x2)
