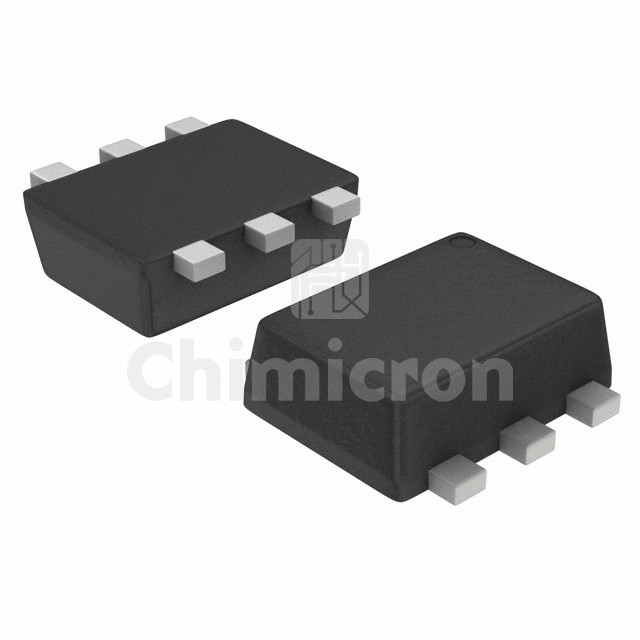

NSBC114EPDXV6T1G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: TRANS PREBIAS NPN/PNP 50V SOT563
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Series: -
In Stock:2793500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NSBC114EPDXV6T1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 2793500 pieces of NSBC114EPDXV6T1G in stock available now. Submit an inquiry for NSBC114EPDXV6T1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)10kOhms
Resistor - Emitter Base (R2)10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce35 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max500mW
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSOT-563
