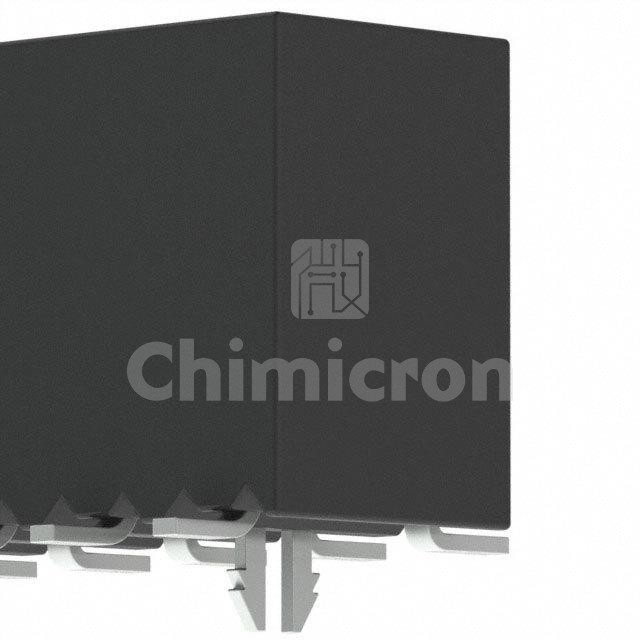

SSM-115-S-DV-LC
Manufacturer: Samtec, Inc.
Description: CONN RCPT 30POS 0.1 GOLD SMD
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: SSM
In Stock:12830
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SSM-115-S-DV-LC Samtec, Inc. at chimicron.com. We have 12830 pieces of SSM-115-S-DV-LC in stock available now. Submit an inquiry for SSM-115-S-DV-LC or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSSM
PackageTube
Part StatusActive
Connector TypeReceptacle, Pass Through
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions30
Number of Positions LoadedAll
Pitch - Mating0.100" (2.54mm)
Number of Rows2
Row Spacing - Mating0.100" (2.54mm)
Mounting TypeSurface Mount
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating30.0µin (0.76µm)
Insulation ColorBlack
Insulation Height0.290" (7.37mm)
Contact Length - Post-
Operating Temperature-55°C ~ 125°C
Material Flammability Rating-
Contact Finish - PostTin
Mated Stacking Heights-
Ingress Protection-
FeaturesBoard Lock
Current Rating (Amps)5.2A per Contact
Voltage Rating405VAC, 572VDC
